Had iyo jeer badbaado leh, aad u waara

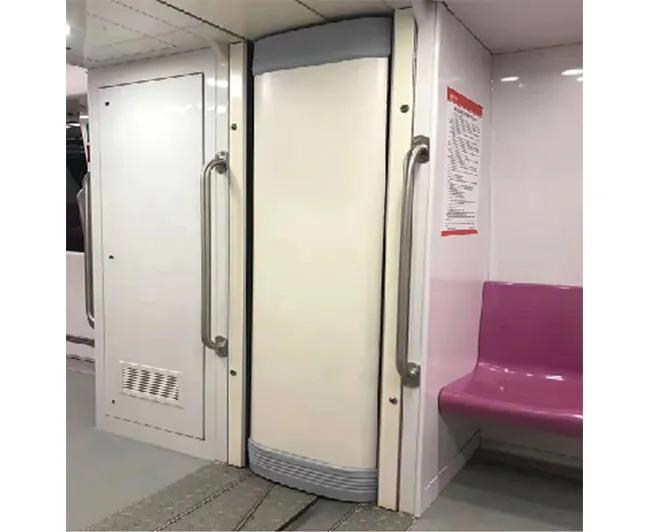

Gaadhigu wuxuu u badbaado badan yahay sida gangways-yada isku xidha qaybaha baabuurka – is-dhexgal ay ku jiraan xoogaga aadka u daran. Tobannaankii sano ee la soo dhaafay, BIDE waxay samaysay horumarro la taaban karo oo ku saabsan soo saarista hababka gangway ee waxqabadka sarreeya. Waad ku mahadsan tahay khibraddan la soo bandhigay, shirkadu waa hogaamiyaha caalamiga ah ee aaggan.
Habka gangway ee BIDE waxaa si weyn loogu isticmaalaa tareenada muhiimka ah ee gobolka, masaafo dheer, iyo gaadiidka xawaaraha dheereeya, basaska dalxiiska iyo basaska magaalada, taraamka, tareenada dhulka hoostiisa mara, tareenada dhulka hoostiisa mara, iyo tareenada xaafadaha.
| No. |
Performance Parameter |
Type A Metro Gangway |
Type B Metro Gangway |
| 1 |
Car End Distance |
920mm |
520mm |
| 2 |
Minimum Passage Width |
≥1500mm |
≥1300mm |
| 3 |
Minimum Passage Height |
≥1900mm |
≥1900mm |
| 4 |
Fire Safety Standard |
EN 45545 HL3 |
EN 45545 HL3 |
| 5 |
Sound Insulation Performance (80km/h) |
≥36dB |
≥36dB |
| 6 |
Sound Insulation Performance (120km/h) |
≥40dB |
≥40dB |
| 7 |
Thermal Conductivity Coefficient (K Value) |
≤3.5 W/m²K |
≤3.5 W/m²K |
| 8 |
Curve Passing Capacity |
Adaptable to R110m, R150m, R250m, R300m single curve and entry curve, R150m-5m-R150m S-shaped curve |
Meet general industry standard requirements |
| 9 |
Expansion and Contraction Adaptability |
Adaptable to dynamic working conditions of 80mm stretching and 100mm compression |
Meet general industry standard requirements |
Qoraallada Shaxda
- Dhammaan cabbiraadaha waxqabadka si buuxda ayaa loo tijaabiyay oo loo xaqiijiyay heerka caadiga ah ee Nooca A iyo Nooca B metro gangways ee Shiinaha, iyadoo la raacayo qeexitaannada ku habboon warshadaha gaadiidka tareenada;
- Waxaan bixin karnaa nakhshadeynta alaabta gangway iyo adeegyada wax soo saarka iyadoo loo eegayo shuruudaha mashruuca ee kala duwan ee soosaarayaasha saamiyada duuban ee gudaha iyo dibedda;
- Heerka badbaadada dabka EN 45545 HL3 waa heerka ugu sarreeya ee badbaadada dabka ee gaadiidka tareenada ee alaabta gudaha, kaas oo si buuxda u buuxiya shuruudaha badbaadada ee mashaariicda metro gudaha iyo dibadda.
